Fiat 500 Warning Lights Guide

At Fiat 500 Frenzy, we're Sheffield's only dealership dedicated exclusively to the Fiat 500. With over 60 years of combined motor trade experience, Tom and Shane have the expertise to guide you through every aspect of Fiat 500 ownership. Whether you're buying, selling, or just researching, we're here to help — no pressure, just honest advice from people who genuinely love these cars.

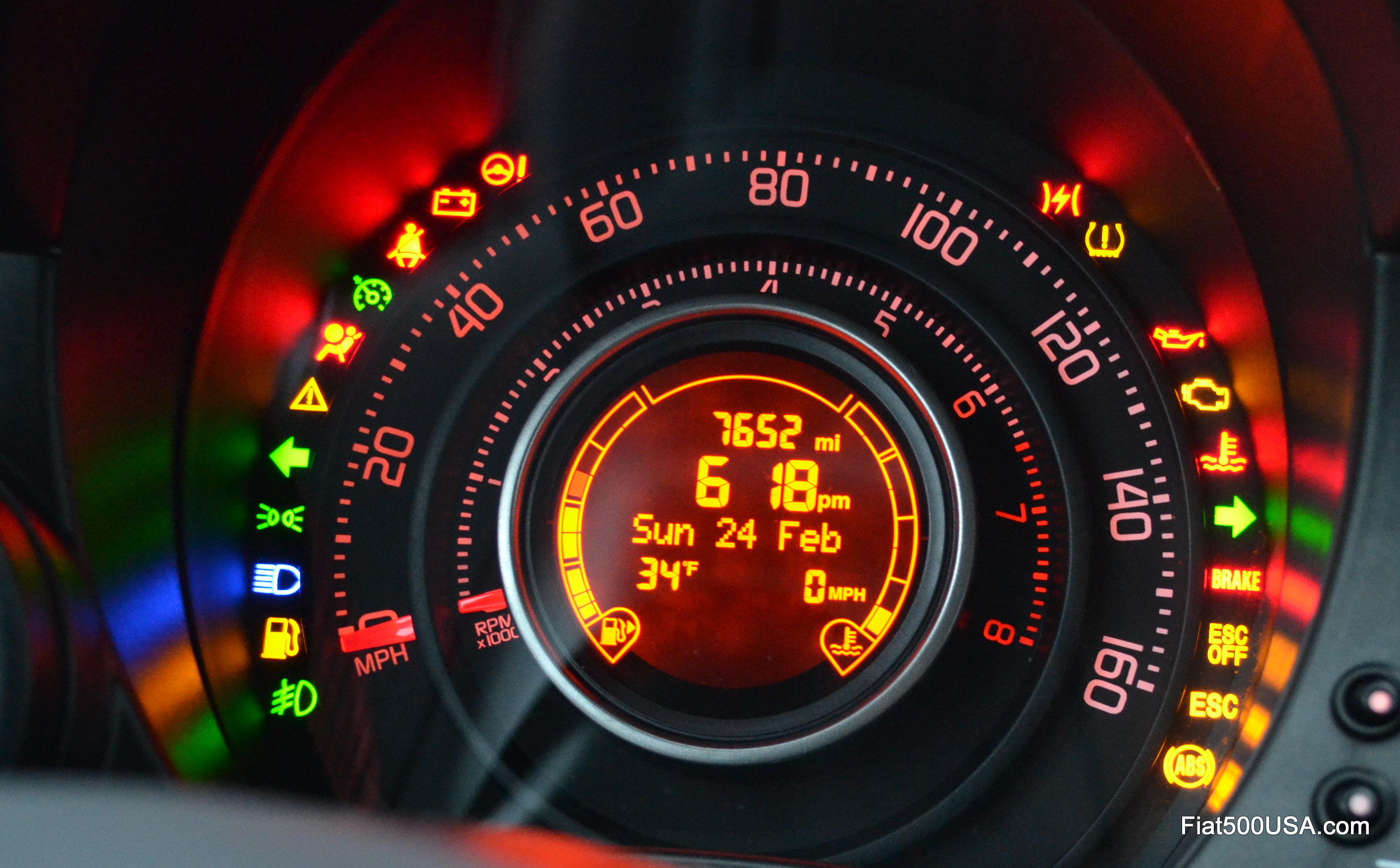

Dashboard warning lights fall into three categories: red (stop immediately), amber/yellow (address soon), and green (informational). The Fiat 500 is generally reliable about illuminating only when necessary, so any warning should be taken seriously. Ignoring lights can lead to expensive damage — a small problem caught early often costs £100-300 to fix; the same problem ignored can cost £2000+.

Red Warnings (Stop the car immediately)

Engine Oil Pressure (oil can with water droplet): Oil pressure has dropped below safe operating range. This indicates either low oil level (top up immediately) or oil pump failure. Do not ignore — running without pressure for even 30 seconds can cause catastrophic engine damage. Stop, turn off the engine, and have it inspected before driving further.

Engine Temperature (thermometer in water): Coolant temperature has exceeded safe limits. Pull over, turn off the engine, and allow it to cool. Do not open the radiator cap while hot (scalding risk). Causes: low coolant (top up with distilled water or proper coolant), blocked radiator, failed thermostat. Diagnose at a garage before attempting further driving.

Brake System (circular symbol with exclamation): Brake hydraulic pressure loss or handbrake fault. This is serious — brakes may fail. Stop safely and don't attempt to drive without diagnosis. Causes: low brake fluid (often indicates a leak), ABS fault, or handbrake switch malfunction.

Amber/Yellow Warnings (Address within days)

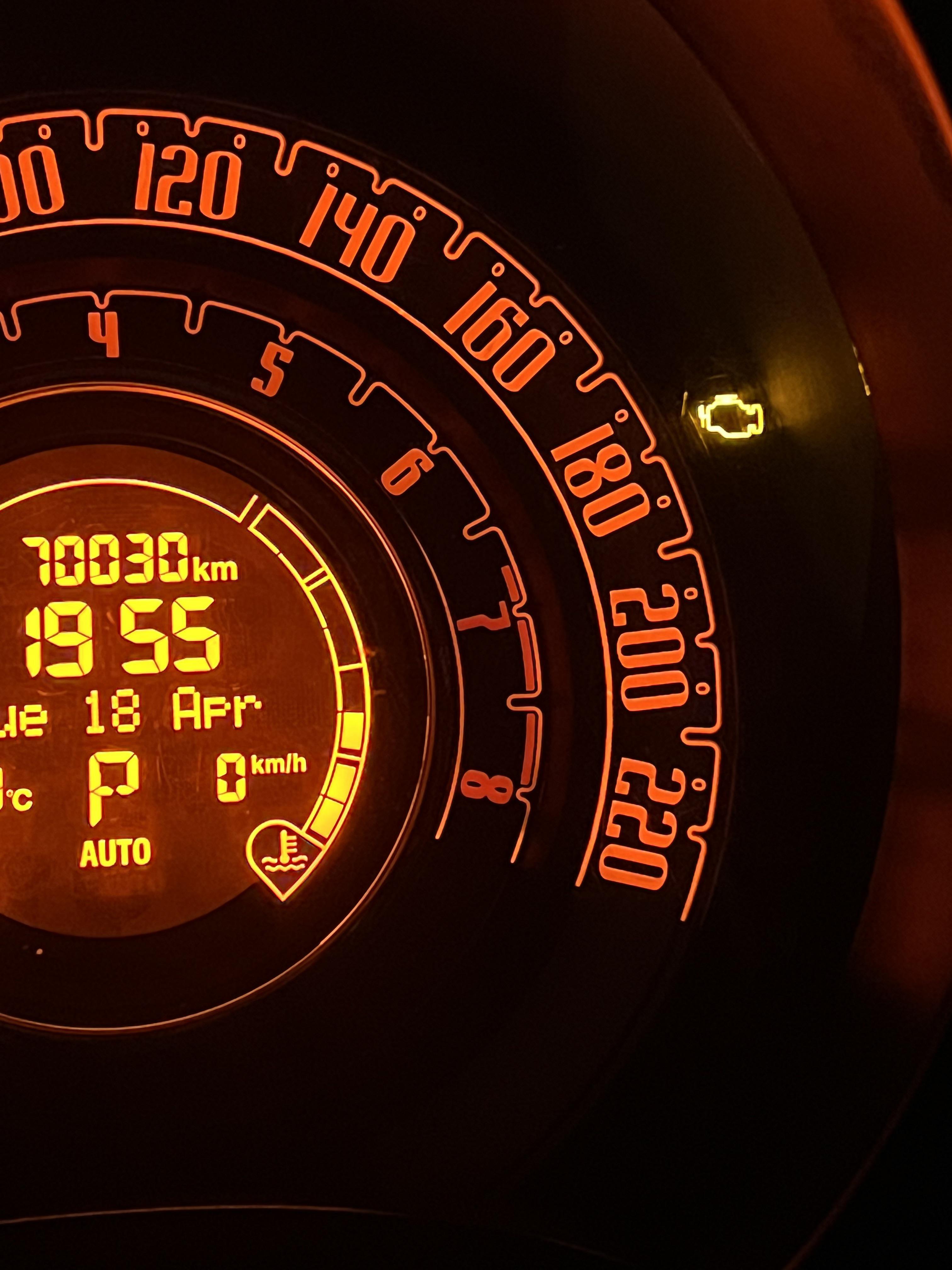

Engine Management (engine symbol with checkmark): Fault code stored in ECU. This is the most common warning and can mean anything from a loose fuel cap to a sensor fault. Have codes read with a diagnostic scanner (£50-100 at a specialist). Common causes on 500s: oxygen/lambda sensor fault (£150-250 to replace), coil pack failure (£60-100), faulty mass air flow sensor (£200-350). Not urgent but address before next MOT.

EPS (Electric Power Steering, steering wheel with exclamation): Extremely common on older 500s — often a false alarm. The EPS system frequently throws codes if the ECU hasn't been recently reset, or if the steering sensor is slightly out of calibration. Often fixed by: disconnecting the battery for 15 minutes (free ECU reset), or professional ECU reset at a dealer (£50-100). Not a safety issue in most cases.

Airbag System (airbag symbol): Fault in airbag control module, wiring, or a seat sensor. This must be diagnosed professionally — we don't recommend driving with active airbag faults. Causes range from loose wiring (easy fix) to sensor failure (£200-400 to replace).

ABS (anti-lock braking symbol): Anti-lock brake system fault — usually a wheel speed sensor malfunction. Brakes still work (ABS simply disables), but absence of anti-lock protection can be dangerous on wet roads. Have it checked before heavy rain. Sensor replacement: £150-300 per wheel.

Green/Blue Warnings (Information only)

Hill Hold Warning: Hill start assist engaged or fault. Usually harmless — just means the system detected an incline and activated or detected a sensor issue. Manual reset: drive on level ground. If persistent, the brake switch may need attention (£100-200).

Seatbelt (seatbelt symbol): A seatbelt isn't buckled. Straightforward — fasten seatbelts and the light extinguishes.
